Automation and commissioning system of a complete chemical production plant Sprea Misr
Technical Specifications
ClientSprea Misr
Project CodeP1984
Commissioning2026
CountryEgypt
IndustryChemical
Scope of Work

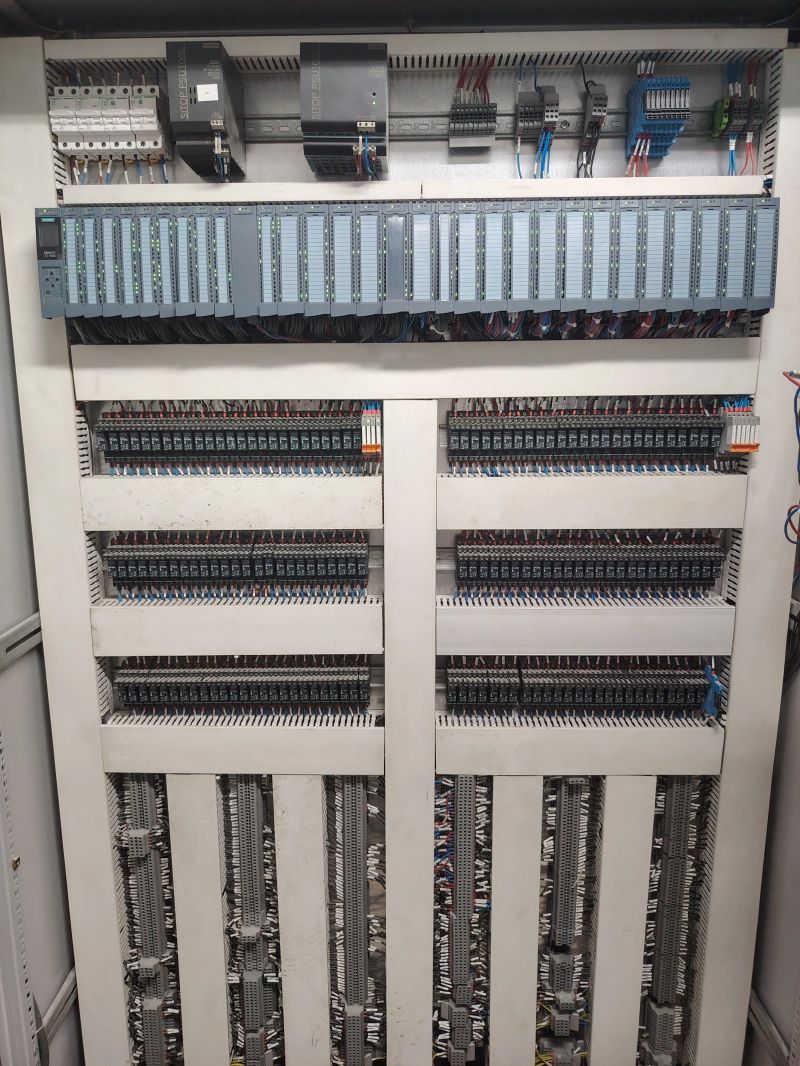

Build control panel
Build power panel
PLC programming
SCADA programming
Remote stations networking
Planet utility and panels wiring
Results & Improvements
Full monitoring system for a complete chemicals production lines with quick and remote accessibility to the whole system.
Project Overview
Build automation and commissioning system of a complete chemical production plant consisting of 4 production lines, integrated into a centralized control system.
Key Project Features:
🔹 Siemens S7-1500 PLC-based control system

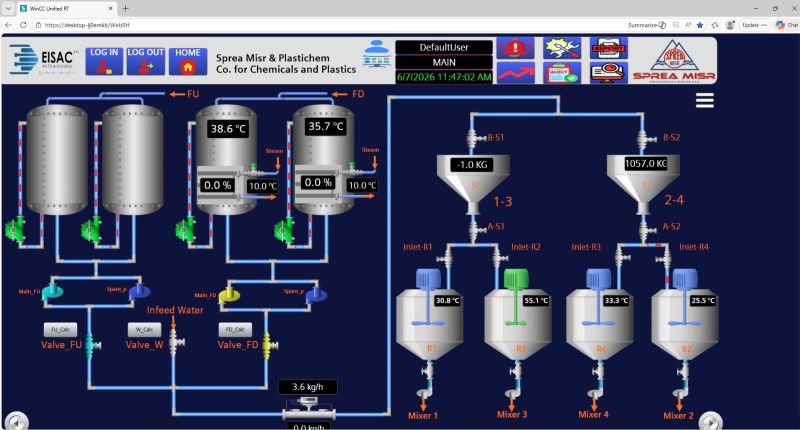

🔹 WinCC Unified SCADA for monitoring and operation

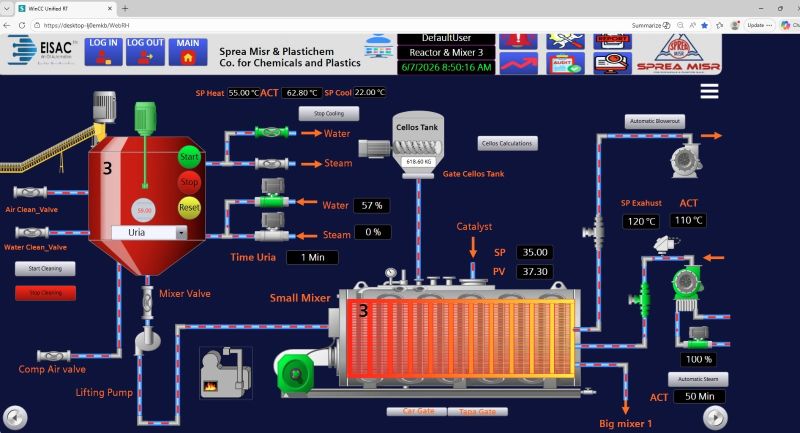

🔹 Automated recipe management for multiple reactor mixing processes
🔹 Accurate dosing and batching using flowmeters and process instrumentation
🔹 Production reporting and consumption tracking

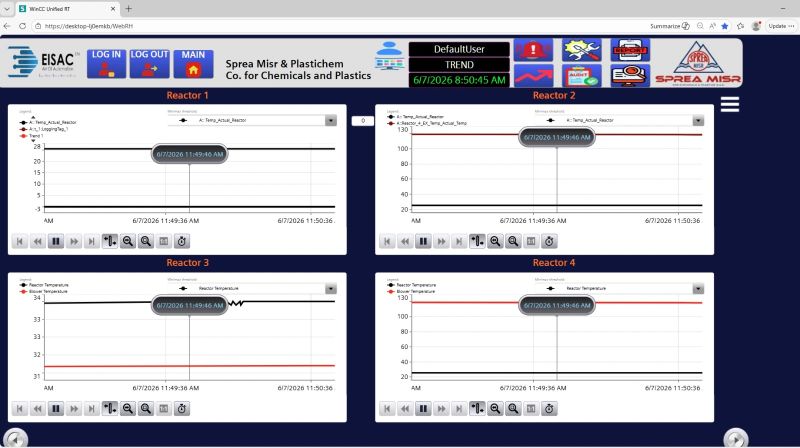

🔹 Real-time process visualization, alarms, trends, and data logging
🔹 Centralized control and monitoring of all production lines
