Schneider Electric Magelis Series Repair
The Schneider Electric Magelis Series is an industrial operator interface used for machine visualization, alarm handling, parameter entry, and production monitoring.
| Brand | Schneider Electric |
| Equipment | HMI Schneider MTN6260-0307 6CB6CA0115E4 |
| Equipment Category | Magelis Series |
| Industry | Chemical |
| Fault Reported |
|
| Repair Turnaround Time | Typical reference: 2–5 working days |
The Challenge
Operators could not reliably monitor or control the machine because the operator panel was unavailable or only partially functional.
Diagnosis
- The display, backlight, touchscreen, power section, communication ports, storage, connectors, and main PCB were inspected and electrically tested.
Our Solution
- Faulty interface or power components were repaired or replaced, connectors and solder joints were restored, and panel communication and user input functions were tested.

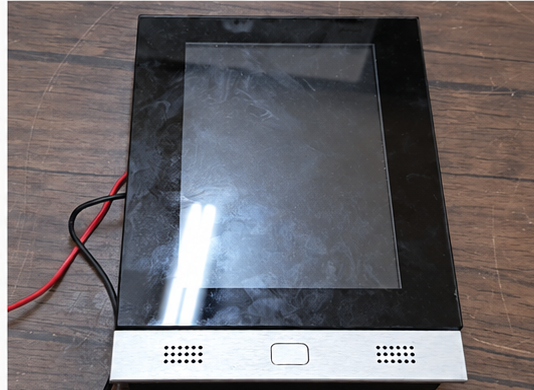

1. BEFORE

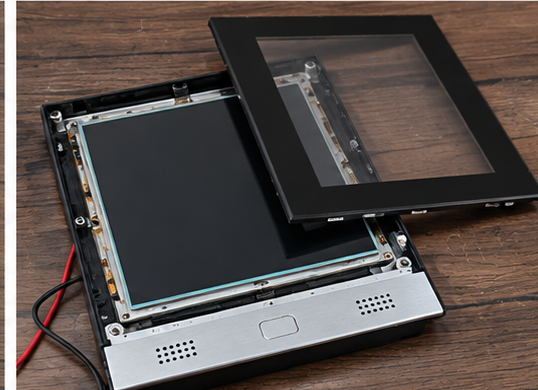

2. DISASSEMBLY

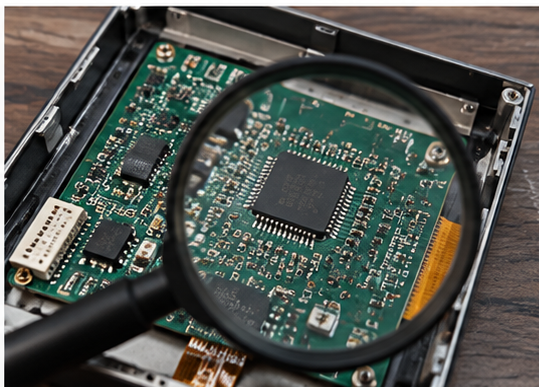

3. INSPECTION

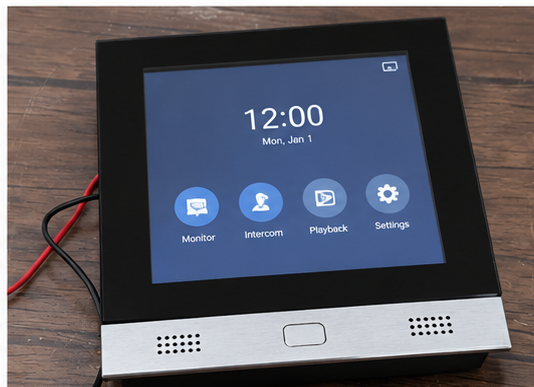

4. FUNCTIONAL TESTING
Testing Performed
- Power-on test; display test; touchscreen test; communication test; port verification; extended stability test.
Final Result
The reference repair process restores normal functional operation after the unit passes the defined electrical, communication, motion, or load checks applicable to the equipment.
Common Fault Codes & Causes
- Fault/alarm numbering depends on the exact hardware revision, firmware and connected controller. Common failure causes: Touch wear; failed backlight; unstable power; damaged communication ports; contamination; heat; connector fatigue.
Preventive Maintenance
- Keep enclosure temperature controlled, avoid liquid ingress, clean using appropriate methods, protect communication cabling, and maintain application backups.
Related Services
- Industrial Electronics Repair; Servo Motor Repair; Servo Drive Repair; PLC/HMI/VFD Repair; PCB Repair
Need Professional Repair?
Professional Schneider Electric Magelis Series repair reference for industrial applications in Egypt, covering diagnosis, component-level repair where applicable, testing, and technical support.
